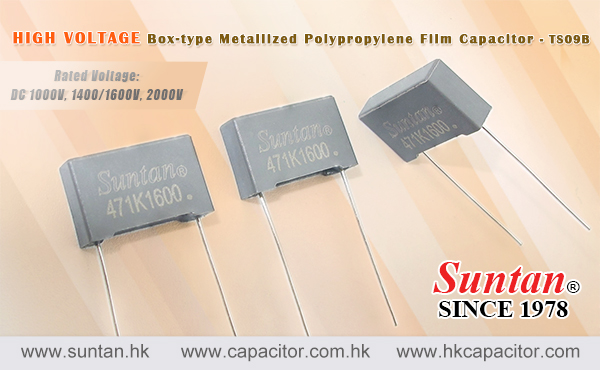

Suntan High Voltage Box-type Metallized Polypropylene Film Capacitor – TS09B

Suntan Technology Company Limited

—All Kinds of Capacitors

This week, we would like to introduce our High Voltage Box-type Metallized Polypropylene Film Capacitor – TS09B , with the features as follows:

Metallized structure, widely used in high voltage, high frequency and pulse circuit.
Low loss and small inherent temperature rise.
Negative temperature coefficient of capacitance.
Excellent active and passive flame resistant abilities.

Reference Standard GB14579 (IEC 60384-17)
Climatic Category 40/105/56
Rated Temperature 85°C for VR (DC), 75°C for VR (AC)
Operating Temperature Range -40°C~105°C
Rated Voltage DC 1000V, 1400/1600V, 2000V
Capacitance Range 0.00022μF ~ 3.9μF
Capacitance Tolerance ±2%(G), ±3%(E), ±5%(J), ±10%(K),±20%(M)
Voltage Proof 1.6UR(5s)
Dissipation Factor ≤0.0010, (1kHz, 20’C)
Welcome to contact us to know more about our parts.
